SDR CORNER POSTS

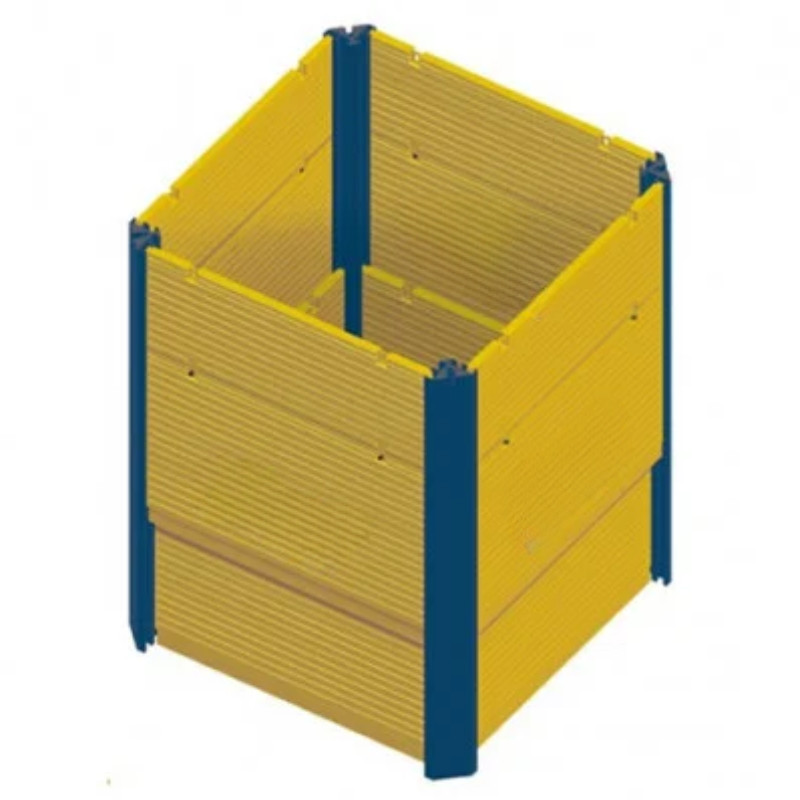

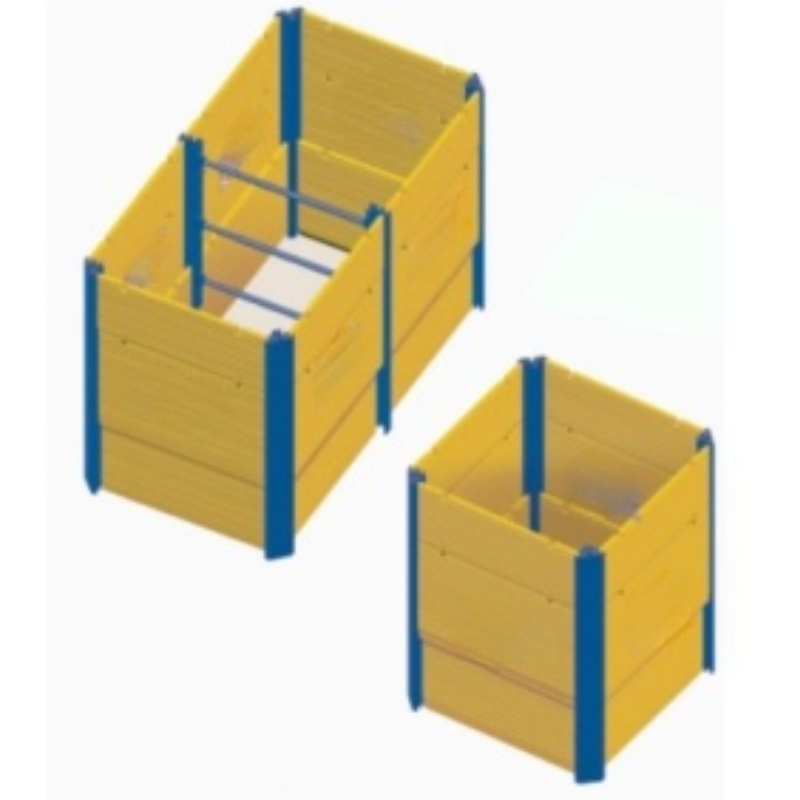

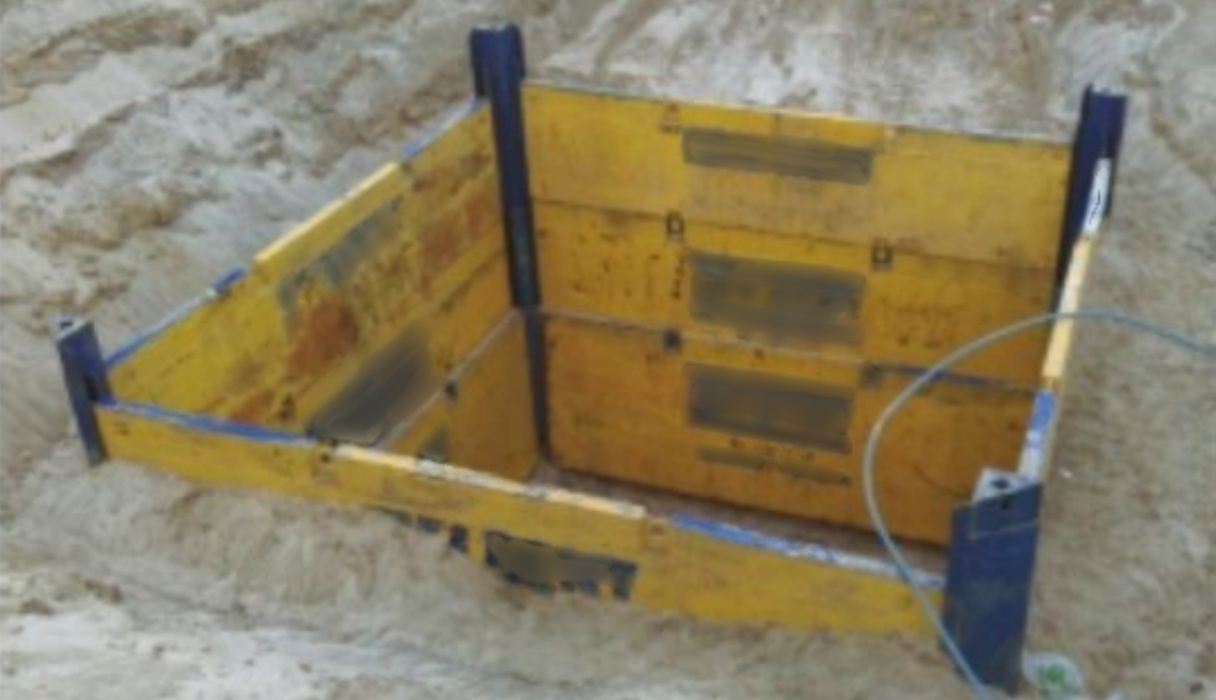

By using elements of the SJ, SD, and SDR corner post system and shore support chambers, you can ensure rectangular-shaped excavations. Therefore, the corner post system works well when creating wells, reservoirs, operating pits, pumping stations, jacks, and drilling. The entire pillar formwork, including posts and corner plates, creates a closed system, allowing for various chamber configurations and flexible size adjustments.

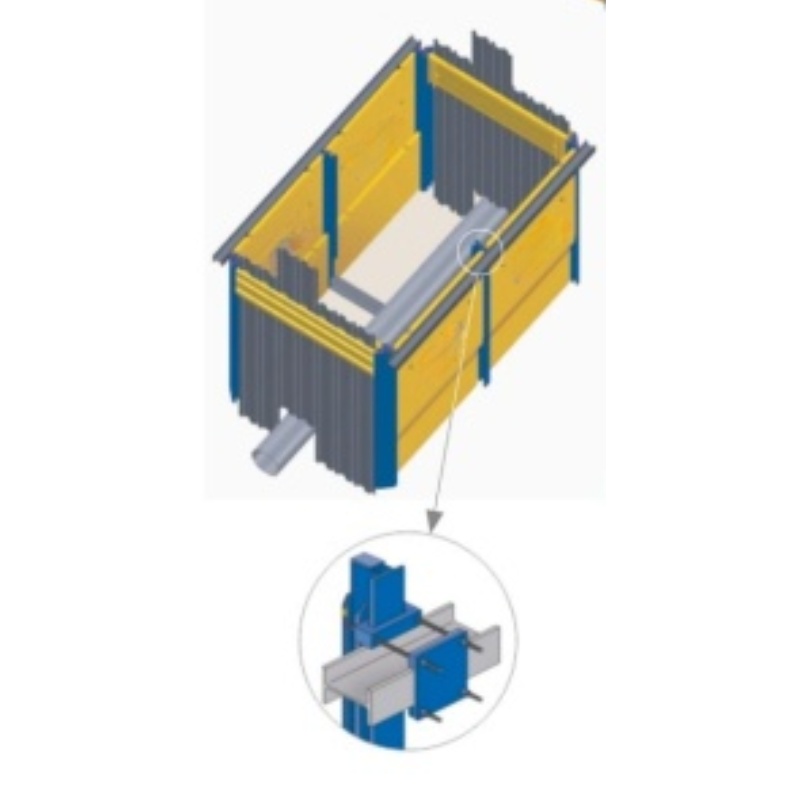

The corner post system significantly increases work efficiency, as there are no accidents within the trench space, complicating earthwork. The SDR system operates not only in construction but also in the repair of underground installations. The post formwork provides workers with easy access to the repaired infrastructure, making pipe repairs faster and easier with SDR. The steel post uniformly carries loads and is equipped with a guiding system, making formwork assembly and disassembly straightforward.
Post formwork is one of the fundamental and most versatile solutions used in excavation work. Our offer includes, among other things, SDR formwork, which works well in excavations up to 6.2 meters deep.

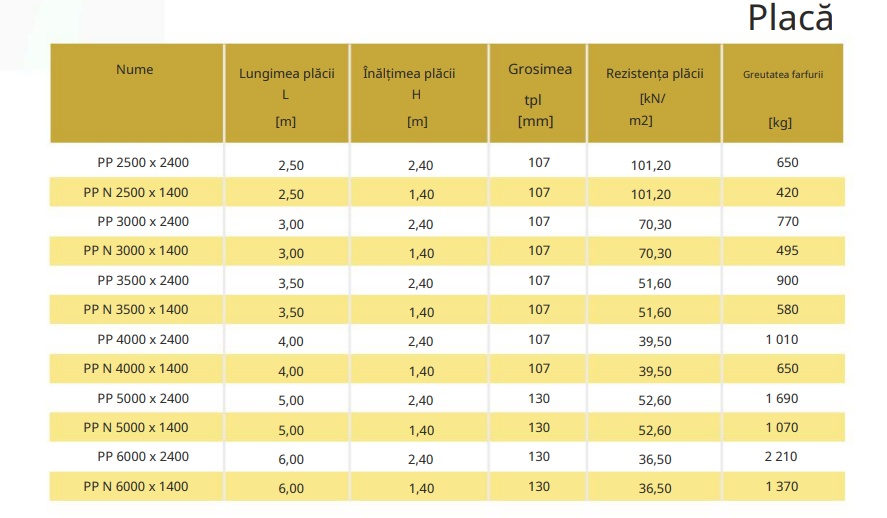

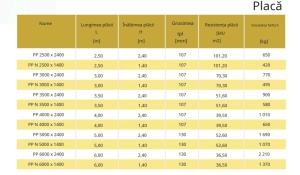

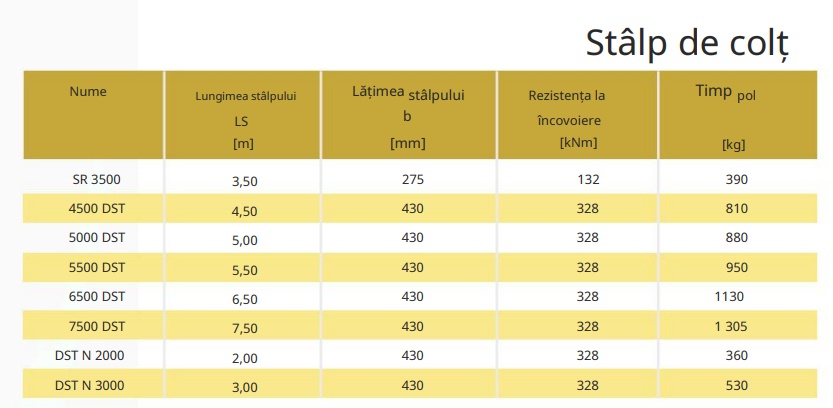

Formwork is necessary to ensure the safety of workers in excavations. The SDR corner system can be adapted to various types of work, as its elements—corner posts and plates—are available in many variants. You can choose corner posts with lengths from 2 to 7.5 meters and bending resistance from 132 to 238 kNm. We also have plates of various lengths, heights, thicknesses, resistances, and weights, allowing them to be used in many construction and renovation projects. Our offer includes plates with a height of 1.4 to 2.4 meters and resistance from 36.50 to 101.20 kN/m².
We have both new and second-hand formwork for SDR posts. The option to buy or rent allows you to find the best solution, beneficial not only for project execution but also for the investor's finances. We can deliver the SDR system anywhere in Romania. We deliver our formwork to post customers nationwide—just select the location and fill out the form. Feel free to contact us; an experienced advisor will gladly answer all your questions!
Photos for informational purposes only!
